Energy Saving China Slurry Pump for Gold Iron Ore Processing Line

Customization: Available
Max.Head: 80-110m
Max.Capacity: >400 L/min
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Overview

Basic Info.

Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Since Irrigation Centrifugal Pumps
Impeller
Open
Usage
Pump, Slurry Pump
Transport Package
Wood-Box
Specification
1m3
Trademark
Kingstone
Origin
Zhengzhou, Henan, China

Product Description

ZJ-type slurry pump
Abrasion-Resistant Flow-Passing Component Materials
The material used for the flow-passing components of slurry pumps is high-chromium alloy. With technological and environmental demands continuously increasing, the requirements for materials are also rising. Research on hypereutectic high-chromium cast iron has revealed that most current studies on high-chromium white cast iron are limited to the hypoeutectic or eutectic range. For example, China's national standard for wear-resistant materials includes KMTBCr26 cast iron, a hypoeutectic high-chromium cast iron known for its high wear resistance and certain toughness, making it suitable for producing complex-shaped castings such as the flow-passing components of slurry pumps. Although hypoeutectic high-chromium cast iron is regarded as one of the best wear-resistant materials available today, its service life is considerably short under highly abrasive working conditions, sometimes lasting only several dozen or a hundred hours.
Hypereutectic high-chromium cast iron features relatively high carbon and chromium content, leading to a significant increase in the volume of carbides within the material and a considerable improvement in hardness. This plays an important role in enhancing wear resistance. However, when the carbide content exceeds a certain level, coarse primary carbides form in the high-chromium cast iron, resulting in a sharp decline in toughness. During casting production, this leads to high rejection rates due to cracking defects. Therefore, hypereutectic high-chromium cast iron is currently mainly used to produce castings with simple shapes applied under low-stress abrasion conditions. By refining the primary carbides in hypereutectic high-chromium cast iron and promoting a globular distribution of carbides, the impact toughness can be improved. This makes it possible to apply hypereutectic high-chromium cast iron in slurry pump components and will further enhance the performance of high-chromium cast iron.
Specification

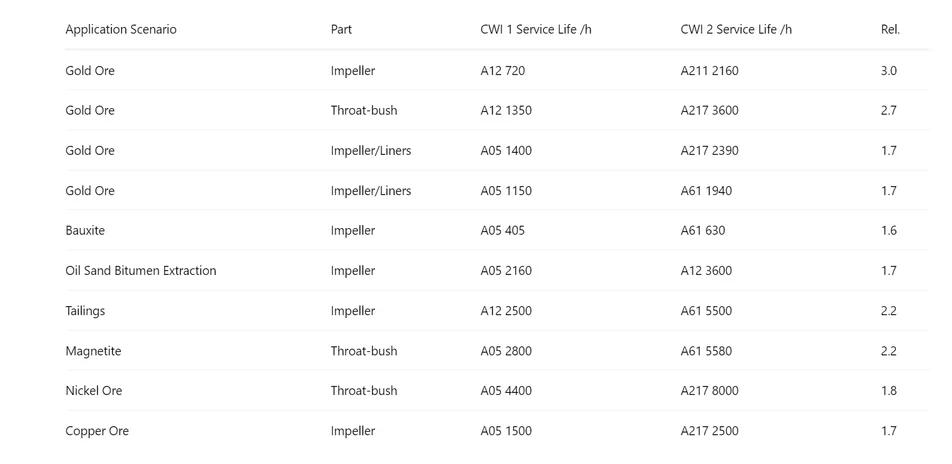

Application of High-Chromium White Iron (CWI)
Energy Saving China Slurry Pump for Gold Iron Ore Processing Line
Energy Saving China Slurry Pump for Gold Iron Ore Processing Line
Energy Saving China Slurry Pump for Gold Iron Ore Processing Line
Energy Saving China Slurry Pump for Gold Iron Ore Processing Line

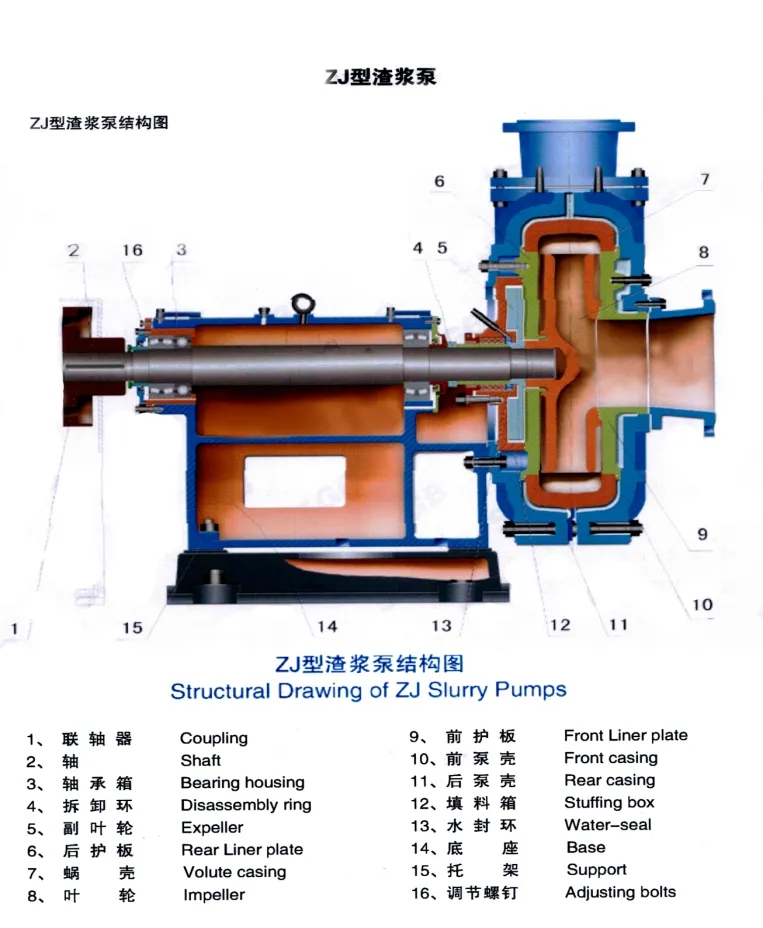

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
Energy Saving China Slurry Pump for Gold Iron Ore Processing Line
Company Profile
Energy Saving China Slurry Pump for Gold Iron Ore Processing Line
Energy Saving China Slurry Pump for Gold Iron Ore Processing Line
